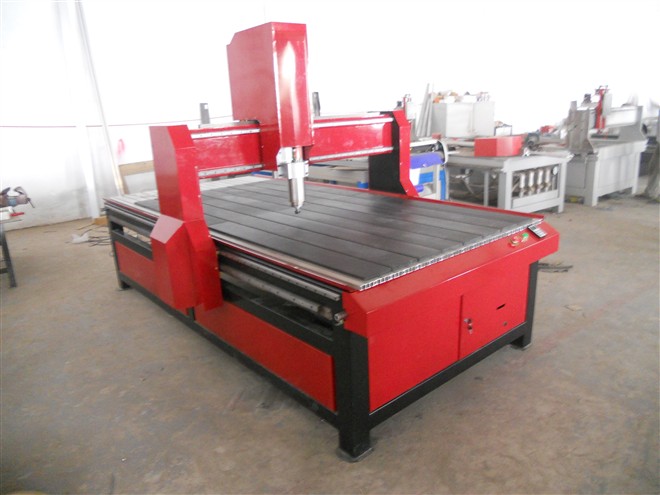

JCM1224 woodworking CNC router
X,Y Working Size 1300x2500mm
Gantry height 200 mm
Max air run speed 32m/min
Max.working speed 15m/min
Resolution 0.005 mm
Repositioning Accuracy <0.05 mm
Available format G code *.U00*.mmg*.plt
Spindle Power 3.0kw aircooling
Spindle Rotating Speed 0-18000rpm/min
Transmission Stepper
Mechanic Transmission Hiwin Linear Square rails on XYZ, Gear Rack and pinion on XY, Ball screw rod on Z
Table surface T-slot
Frame Welded Tubular Steel
Machine Gross Weight 1000KGS
