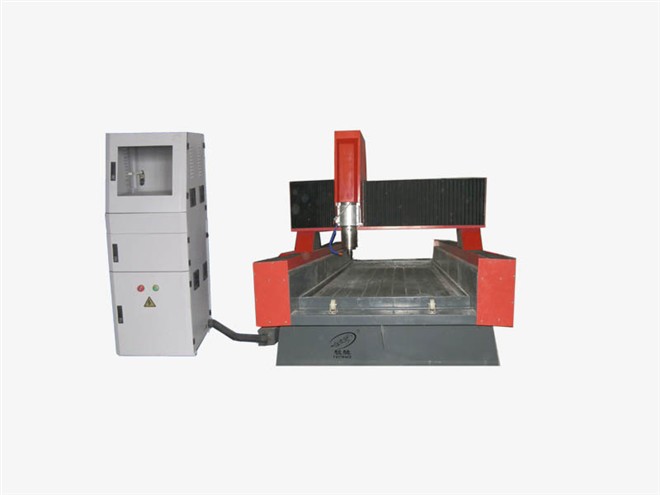

Marble glass engraving machine JCS9018

1. Adopt heavy stress relieved frame, without deformation.

2.Adopt precision rack and pinion, even moving

3.Imported Hiwin Linear SQUARE RAILS on XYZ, heavy bearing,long life.

4.The machine comes with water shelter and cooling systems

5. All axis are dust-proof design with bellows .

Application :

Engrave texts, fonts, lines, patterns, reliefs on marble, granite,tombstone,ceramic tiles, glass .

1. Working size: 900*1800mm

2. Z : 200mm

3.Max repetation precision:<0.05mm

4.Resultion:<0.005mm/step

5.XYZ rails : Square rails

6.Command: G code

7. Controller: NC studio or DSP

8.Spindle  : 4.5 kw or more power spindles
