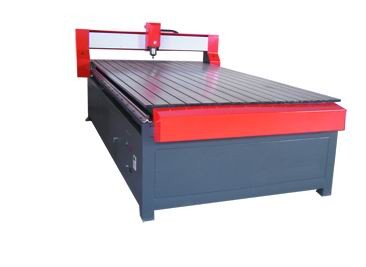

Sign CNC Engraver
Making Advertising logos, plastic labels.ABS labels. Chest badge, architectural models, acrylic cutting.sign making .meter panel, arts and craftsWood relief and etc.
Instruction & Features.
1.Unique Mechanical frame : Whole Cast -iron frame . High rigidity .
2.Equipped with the brushless spindle , lower noise, longer usage .
3.Support Type 3.Artcam, ProE and other international softwares which is able to creating G codes
4.High performance subdivision motors ensure fast speed and the higher working precision
5.Imported Ball screw rods eliminate the errors .
6.PC based Visual NC studio controlling sytem. Dynamic display of tracking speeds and working process. More safe and simple in operation.
|
Description
|
RD1212
|
RD1218
|
RD1215
|
RD1224
|
|
Working Size
|
1260*1200
|
1260*1800
|
1260*1500
|
1260*2460
|
|
Z travel size
|
120mm
|
|
Guideway on XYZ
|
Round Rails
|
|
Transmission on XYZ
|
Ball Screw rods
|
|
Motor
|
Stepper
|
|
Max Travel speed
|
4000-8000mm/min
|
|
Table Surface
|
T-slot PVC table
|
|
Control Sytem
|
Nc Studio
|
|
Applicable File formats
|
G code( .mmg .uoo .plt)
|
|
Cabinet
|
Built -in
|
|
Spindle Power
|
1.5kw or 2.2 kw
|
|
Options Configuration :
Dust Collection system . DSP controller (Reading U disk) .Linear square rails on XYZ .
|
|
|
