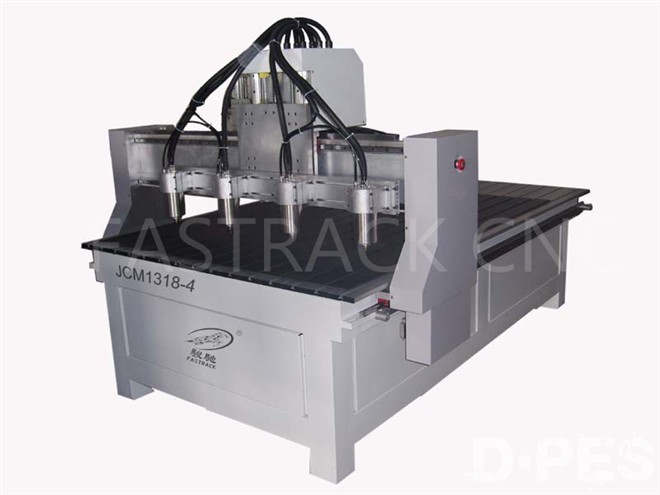

Multiple spindles CNC router JCM1318-4
X,Y Working Size 1300x1800mm
Gantry height 200 mm
Max air run speed 25m/min
Max.working speed 10m/min
Resolution 0.005 mm
Repositioning Accuracy <0.05 mm
Available format G code *.U00*.mmg*.plt
Controller NC studio
Spindle Power 1.5KW ( 4 PICS IN ONE PLATE)
Spindle Rotating Speed 0-24000rpm/min
Transmission Stepper
Mechanic Transmission Hiwin Linear Square rails on XYZ,
Gear Rack and pinion on XY, Ball screw rod on Z
Table surface T-slot
Frame Welded Tubular Steel
Machine Gross Weight 1000KGS
